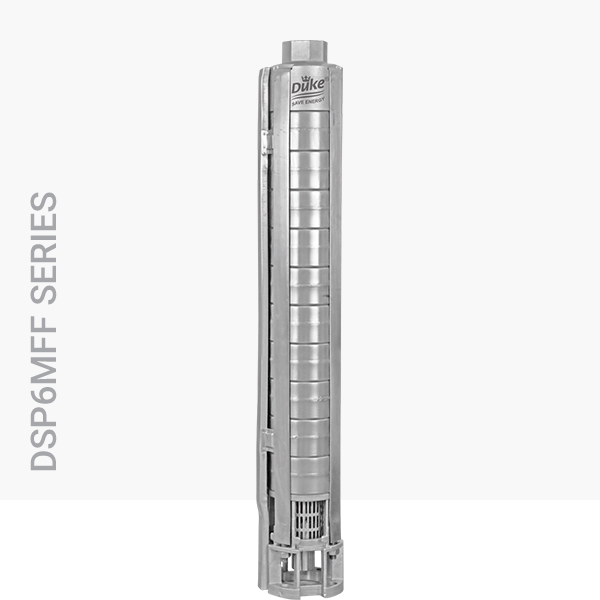

DSP6MFF



DSP6MFF – Series pumps are fully Stainless Steel, Fabricated, 6″ Borewell Submersible pumps suitable for clear water, high head applications. These Pumps are of Multistage Centrifugal types, accommodating Mixed flow Impellers according to the required Head & Flow. The Pump & Motor are joined with NEMA Standard Splines coupling or Keyway coupling. The precise design, materials combination, manufacturing process and stringent quality assurance procedures ensure high quality performance and durability of the pumps.

Applications
  • Irrigation
  • Industrial
  • General Water Supply
  • Pressure boosting units
  • Fountains
  • Gardens
  • Sprinkler systems
  • Food processing industry
Features
  • Optimal Design
  • Precisely made parts
  • High Operating efficiency
  • Good resistance to salt
  • Hygiene
  • Durable

Operating Conditions

Nominal Diameter 6″ (150mm)
Power Range 0.75 – 85 HP
Nominal Speed 2900 rpm
Flow Range 6 – 72.0 m3/h
Shut-off Head 650 m
Outlet sizes 2″, 2.5″, 3″, 4″
Shaft Coupling Keyway / Splines
Max. Operating Pressure 65 bar
