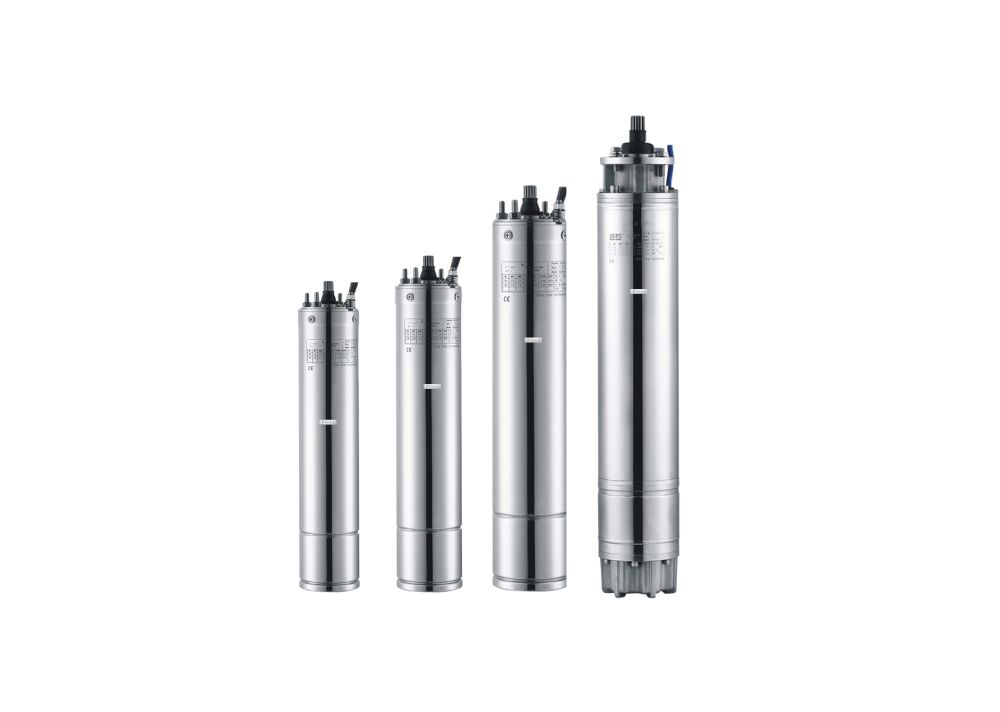

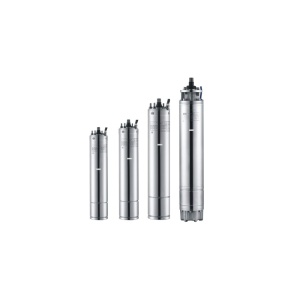

VINCO Borehole Submersible Motors

Vinco Submersible  motors  are  high specification motors made from quality materials, high specifications, workmanship and  efficiency offering reliability for all borehole and well applications. They are liquid-cooled, 2-pole asynchronous squirrel-cage type, constructed from stainless steel and may be coupled to any borehole pump with NEMA standard splines.
Single phase motors should be supplied with purpose designed control boxes for operation and protection against overload, dry running and over/under voltage. The controller boxes come with capacitors. Three phase motors require a remote DOL starter; An Empower EMP DOL Pump Controller is recommended for detailed pump control including low level, motor overload, dry well, full tank and irregular power supply protection.

Salient Features

• The motor windings are made up of 220°C-lacquer coated copper wires offering excellent insulation and water-proof property.
• The outer motor shell is coated with high quality cold-rolled silicon steel lamination.
• Heavy duty bearings with high thrust capacity.
• Oil sealing system for high sand resistance and degree of protection : IP68.
• Mechanical sealing system for high sand resistance.
• High Quality bearings undertaking high thrust loads.
• Reinforced butyl rubber diaphragm for Pressure balancing

Frequency: 50hz
Maximum Ambient Temperature: 35°C
Max. Voltage Variation = 10°C
Max. Starts per Hour= 20

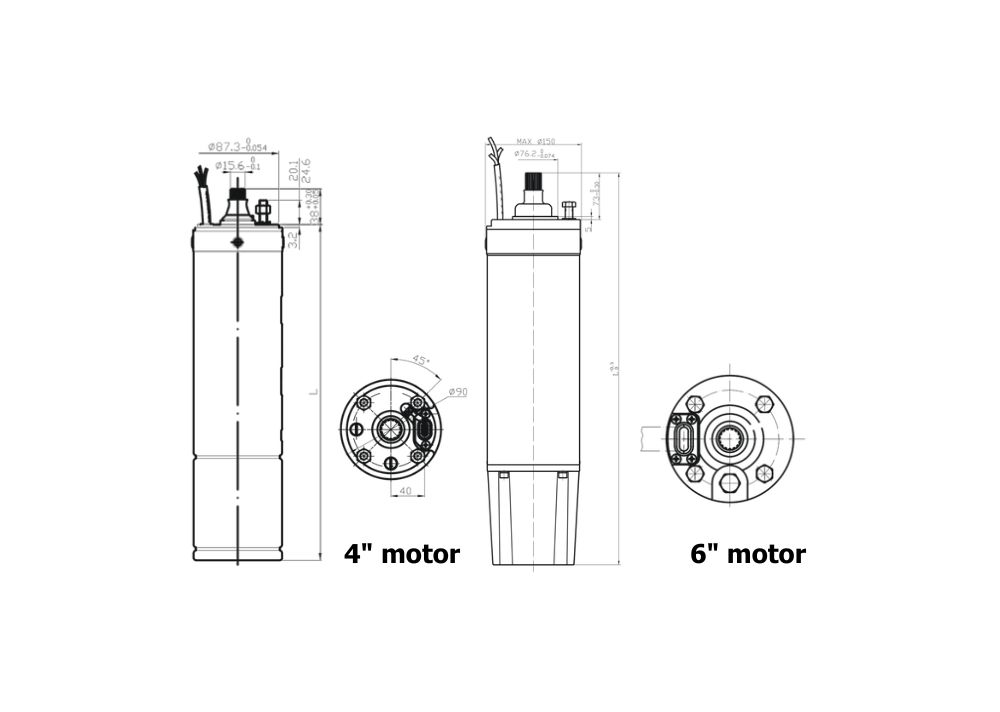

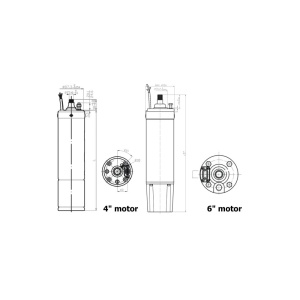

Motor Technical Specifications
