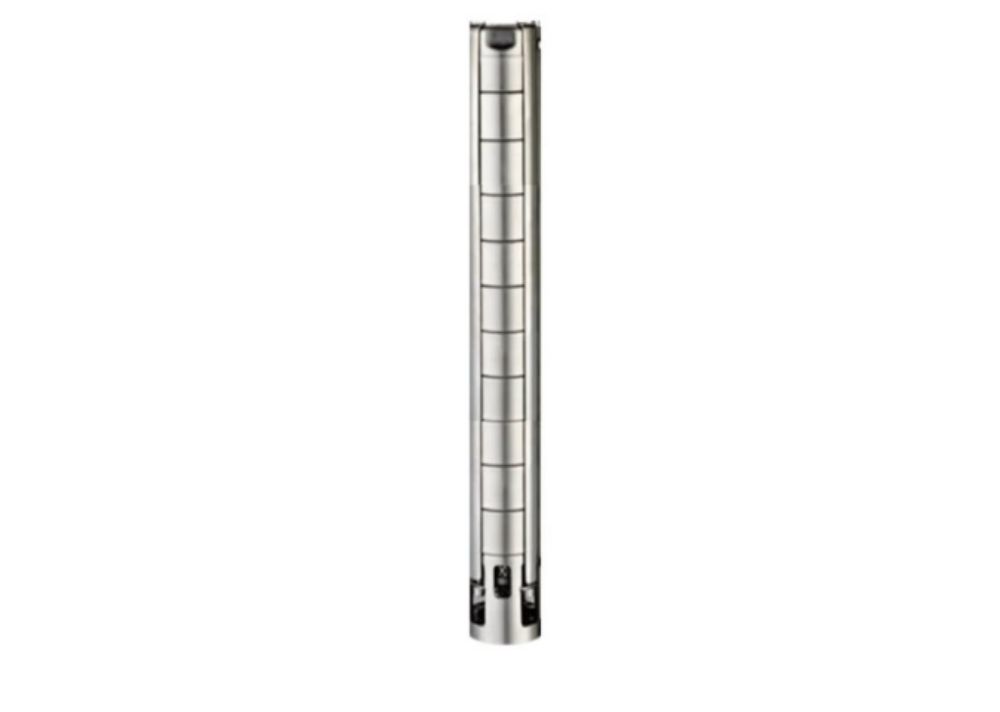

Pump and Motor Description:
I. Benax SP pump series are high-performance and wear-resistant phreatic submersible electric pumps, which are combined and produced by importing Italian and American advanced pump-making techniques. The pump is coupled to a sealed liquid oil filled 2 pole asynchronous squirrel cage motor that adopts the standard of American and Italian submersible motors.
II. The body is covered with stainless case, and its rush pith is made with high-quality wear-resisting alloy and compound stainless steel materials, equipped with the special anti-wearing bearing structures of multi-level alloy rub against the wearable rubber. These pumps are designed specifically for borehole supply applications. They are of multistage centrifugal impeller design.
Pumped liquids: Clean thin, chemically non-aggressive liquids without solid particles or fibres.
Max Liquid Temp: +40°C
Minimum Borehole Diameter: 150mm
Max Immersion Depth: 300m
Enclosure Class: IP68
Insulation Class: F
Speed: 2900rpm
Voltage: 3ph-415V

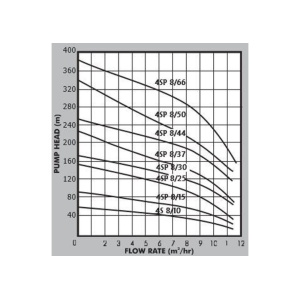

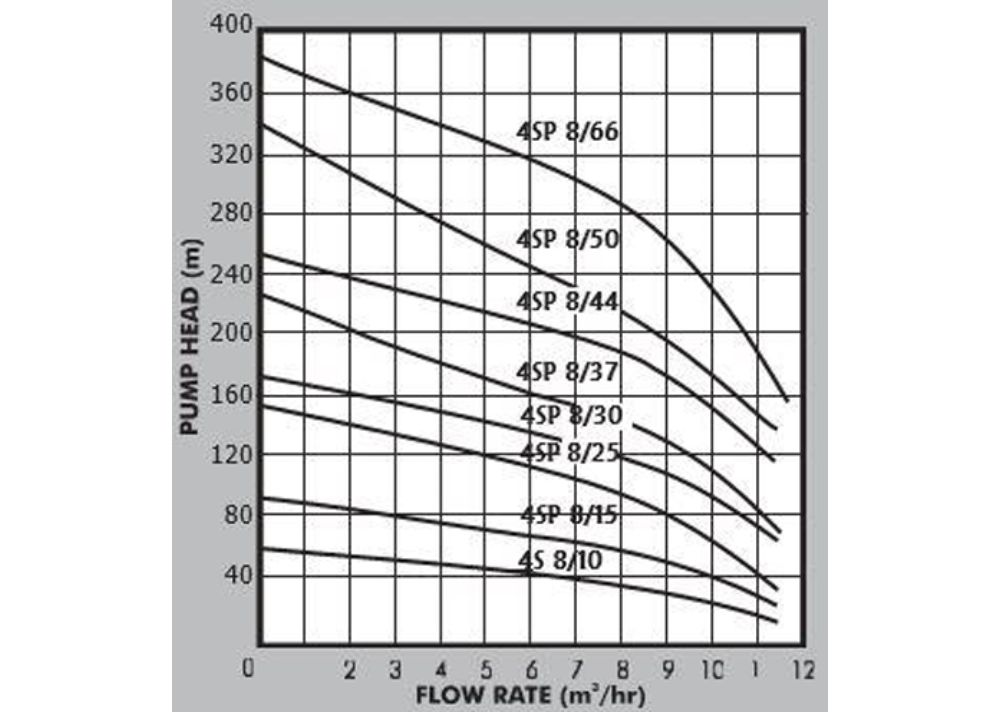

Pump Specifications
|
Type
|
Model
|
Theoretic Head
|
Pump Head
|
Flow Rate (M3/hr)
|
DIMENSIONS (mm)
|
|
Weight
|
|
0
|
12
|
15
|
17
|
21
|
31
|
|
Flow Rate (L/min)
|
A
|
B
|
C
|
D
|
KG
|
|
HP
|
KW
|
M
|
M
|
0
|
200
|
250
|
283
|
350
|
383
|
Water Outlet
|
External Diameter
|
Max Size
|
Length
|
|
6SP17/7
|
5.5
|
4
|
75
|
57
|
75
|
66
|
59
|
57
|
45
|
37
|
21/2”
|
121.3
|
135
|
607
|
9.9
|
|
6SP17/10
|
7.5
|
5.5
|
108
|
82
|
108
|
96
|
86
|
82
|
61
|
47
|
754
|
13.1
|
|
6SP17/13
|
10
|
7.5
|
141
|
106
|
141
|
127
|
109
|
106
|
70
|
57
|
901
|
16.1
|
|
6SP17/17
|
13
|
9.2
|
184
|
139
|
184
|
163
|
147
|
139
|
100
|
80
|
1097
|
20.2
|
|
6SP17/20
|
15
|
11
|
214
|
164
|
214
|
180
|
163
|
154
|
106
|
88
|
1244
|
23.3
|
|
6SP17/24
|
18
|
13
|
260
|
196
|
260
|
230
|
208
|
196
|
140
|
115
|
1440
|
27.42
|
|
6SP17/27
|
20
|
15
|
298
|
221
|
298
|
258
|
242
|
221
|
160
|
140
|
1587
|
30.51
|
|
6SP17/34
|
25
|
19
|
355
|
270
|
355
|
315
|
285
|
270
|
191
|
157
|
1881
|
36.69
|
|
6SP17/40
|
30
|
22
|
434
|
328
|
434
|
385
|
346
|
328
|
235
|
190
|
2224
|
43.9
|
|
6SP17/48
|
35
|
26
|
520
|
380
|
520
|
460
|
425
|
380
|
300
|
270
|
2224
|
43.9
|
