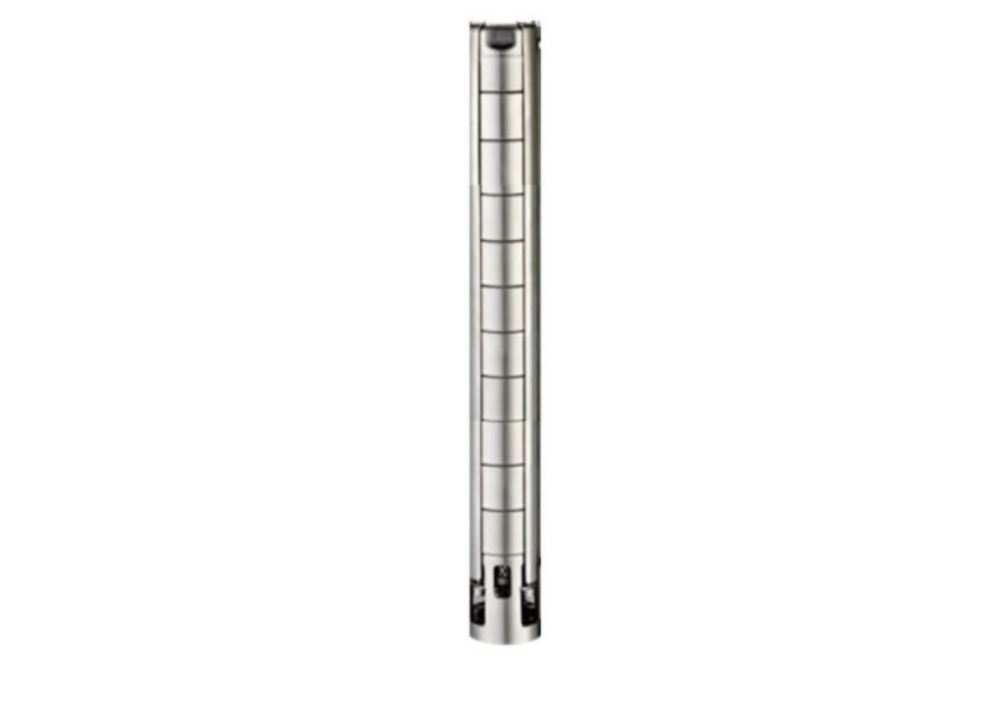

Pump and Motor Description
I.Benax SP pump series are high-performance and wear-resistant phreatic submersible electric pumps, which are combined and produced by importing Italian and American advanced pump-making techniques. The pump is coupled to a sealed liquid oil filled 2 pole asynchronous squirrel cage motor that adopts the standard of American and Italian submersible motors.
II.The body is covered with stainless case, and its rush pith is made with high-quality wear-resisting alloy and compound stainless steel materials, equipped with the special anti-wearing bearing structures of multi-level alloy rub against the wearable rubber. These pumps are designed specifically for borehole supply applications. They are of multistage
centrifugal impeller design.
Pumped liquids: Clean thin, chemically non-aggressive liquids without solid particles or fibres.
Max Liquid Temp: +40°C
Minimum Borehole Diameter: 110mm
Max Immersion Depth: 200m
Enclosure Class: IP68
Insulation Class: F
Speed: 2900rpm
Voltage: 1ph-240V, 3ph-415V
|

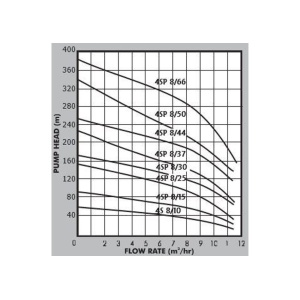

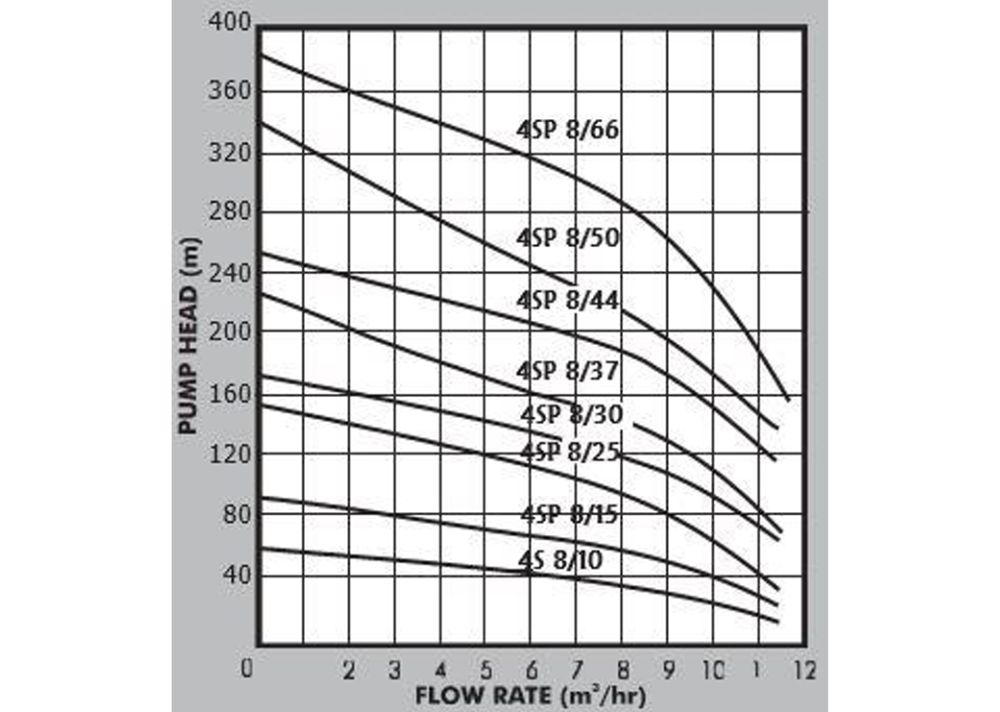

Pump Type
|
Motor
|
Theoretic
Head
|
Pump
Head
|
Flow Rate (M3/hr)
|
DIMENSIONS (mm)
|
Weight
|
|
0
|
3.6
|
4.8
|
8
|
9.6
|
11
|
| |
kW
|
HP
|
M
|
M
|
Flow Rate (L/min)
|
A
|
B
|
C
|
D
|
KG
|
|
0
|
60
|
80
|
133
|
160
|
180
|
Water Outlet
|
External Diameter
|
Max Size
|
Length
|
|
4SP 8/10
|
2
|
1.5
|
58
|
43
|
58
|
49
|
47
|
43
|
31
|
23
|
2"
|
87.3
|
98
|
440
|
6.52
|
|
4SP 8/12
|
3
|
2.2
|
68
|
51
|
68
|
58
|
55
|
51
|
38
|
29
|
500
|
7.12
|
|
4SP 8/15
|
3
|
2.2
|
87
|
64
|
87
|
74
|
69
|
64
|
46
|
36
|
590
|
8.02
|
|
4SP 8/18
|
4
|
3
|
104
|
77
|
104
|
88
|
83
|
77
|
54
|
41
|
680
|
8.92
|
|
4SP 8/21
|
5.5
|
4
|
120
|
90
|
120
|
103
|
97
|
90
|
67
|
51
|
770
|
9.82
|
|
4SP 8/25
|
5.5
|
4
|
142
|
107
|
142
|
125
|
118
|
107
|
77
|
57
|
890
|
11.02
|
|
4SP 8/30
|
7.5
|
5.5
|
172
|
129
|
172
|
153
|
144
|
129
|
100
|
76
|
1040
|
12.53
|
|
4SP 8/37
|
7.5
|
5.5
|
210
|
159
|
210
|
175
|
165
|
159
|
105
|
82
|
1250
|
14.62
|
|
4SP 8/44
|
10
|
7.5
|
251
|
189
|
251
|
215
|
204
|
189
|
135
|
95
|
1460
|
16.72
|
|
4SP 8/50
|
10
|
7.5
|
288
|
215
|
288
|
254
|
242
|
215
|
168
|
129
|
1640
|
18.52
|
|
4SP 8/66
|
15
|
11
|
380
|
280
|
380
|
340
|
310
|
280
|
220
|
170
|
3400
|
22.53
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
