Benax Eguard Intelligent Pump Controller

PreviousPrevious
intel
NextNext
intelinter

Available from Benax Solar · Nationwide delivery

Get a quotation, sizing advice and delivery time for this product from our engineers.

+254 790 665 660


The add to cart button will appear once you select the values above

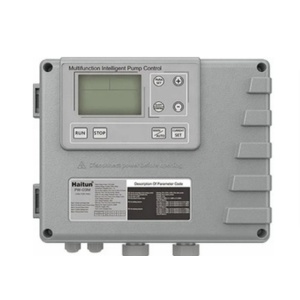

BENAX EGUARD is a multifunctional intelligent controller designed for a wide variety of operating conditions ranging from; borehole pumping systems, water boosting systems and general water supply applications. They are fitted with a digital display that indicates  system operation and fault parameters and can be programmed using panel buttons for various functions.

The particular features of these controllers include:

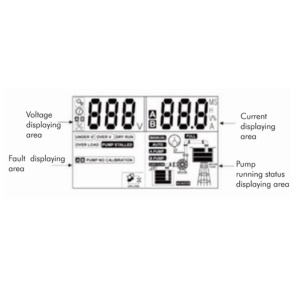

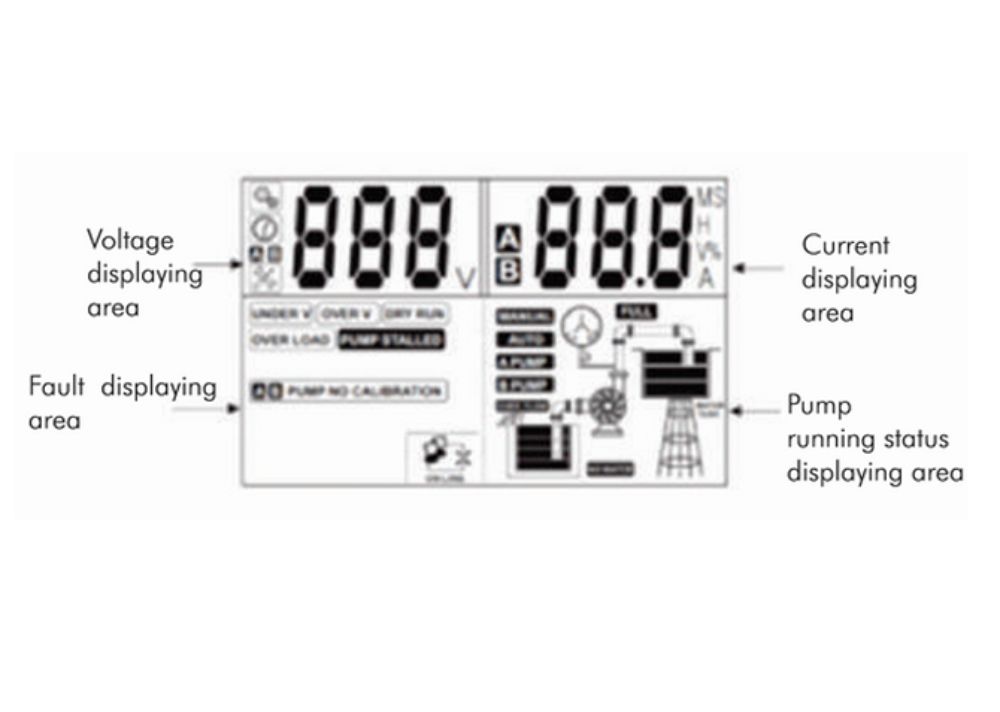

  • Multifunction LCD display indicating pump operating status, voltage , current value, fault indication and running hours.
  • Built in AC Contactor and Air Breakers Protection.
  • Inbuilt protection for; motor current overload, phase loss, voltage im-balancing, over/under voltage, phase reversal and pump short cycling.
  • In built protection for dry-running or level sensor connections for electrodes, float-switch and pressure switches.
  • Pump start and stop determination by different current levels and pressure settings.
  • Digital connectivity interface for BMS application - Connection via (MODBUS RS485 Communication port).
  • Five working modes; with pressure sensors, with float switch, liquid level sensor with mechanical pressure switch and electrical contact pressure gauge

Operating Conditions

  • Enclosure Class:  IP54
  • Relative Humidity: 20% - 90%
  • Temperature Range: 25 °C - +55 °C
  • Power Supply:  415 V±15% - 3PH

CONTROLLER DATA



Controller model

Motor Size (KW)

Working  Voltage Range

DIMENSIONS (mm)

Weight



(Kg)

Min

Max

Height

Width

Depth

BENAX EGUARD T5 0.75KW- 2.2KW 3PH

0.75

2.2

220-240v

320

 240

120

 3

BENAX EGUARD T5 0.75KW- 4KW 3PH

0.75

4

380-415v

BENAX EGUARD T10 5.5KW- 7.5KW 3PH

5.5

7.5

380-415v

BENAX EGUARD T5 2.2KW- 11KW 3PH

2.2

11

380-415v

BENAX EGUARD T5 2.2KW- 15KW 3PH

2.2

15

380-415v

TECHNICAL DATA

Working voltage

AC2415V/50Hz/60Hz

Over-voltage operating
 voltage

304v

Rated output power

 0.75 - 22kw

Over-voltage operating
 voltage

437v

Locked-rotor Protection Time

1 second

Over-current fault recovery
 time

30minutes

Dry-running Protection Time

10Seconds/3minutes/5 minuitees
 optional

Distance for signal Transmit

200m

Recovery Time from Dry-running

30minutes

Protection Degree

1p54

 Under/Over Voltage
 Operating Time

5minutes

Adaptive Pressure Sensor

DC5V working voltage/ 0.5-4.5V
 signal output type, range 0
1.0mpa, 0-1.6mpa, 0-2.5mpa can
 be selected

Under/Over Voltage
 Recovery time

5minutes

Adaptive Pressure Sensor

DC5V working voltage/ 0.5-4.5V
 signal output type, range 0
1.0mpa, 0-1.6mpa, 0-2.5mpa can
 be selected
