The Vinco 4SP 3 Series comprises high-pressure multi-stage centrifugal pumps designed for 50Hz power supplies.
Models available:
· 4SP 3/18 - 1.1 kW (1.5 HP)
· 4SP 3/25 - 1.5 kW (2.0 HP)
· 4SP 3/33 - 2.2 kW (3.0 HP)
· 4SP 3/45 - 3.0 kW (4.0 HP)
· 4SP 3/60 - 4.0 kW (5.5 HP)
High Performance: Engineered to generate substantial water pressure while efficiently moving clean, thin liquids. Notably, these pumps maintain significant pressure even as flow rates increase.

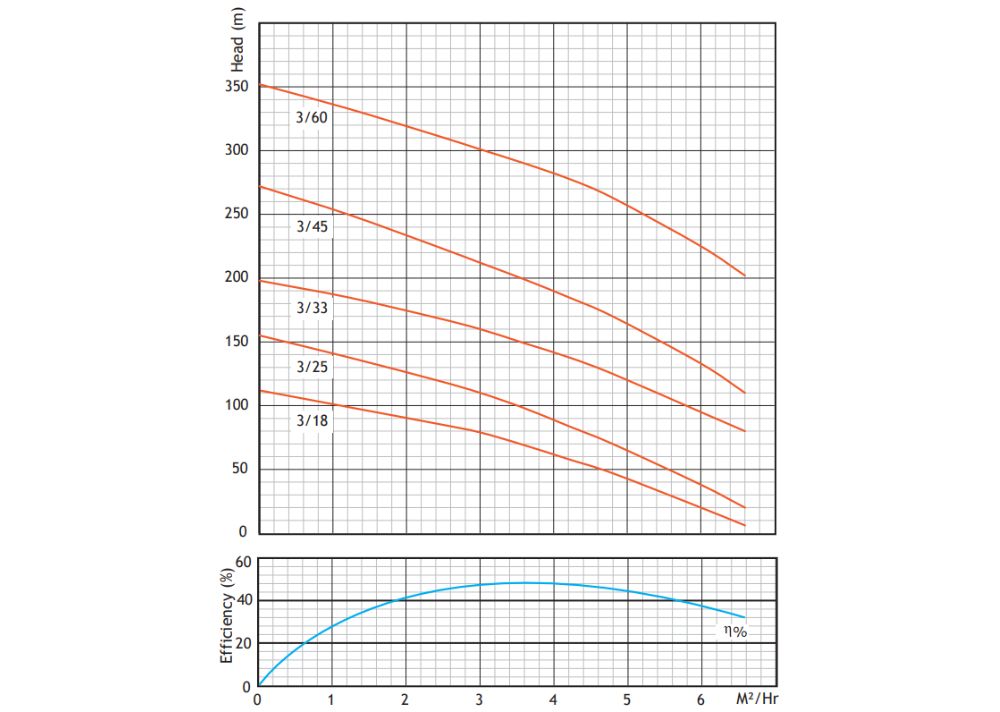

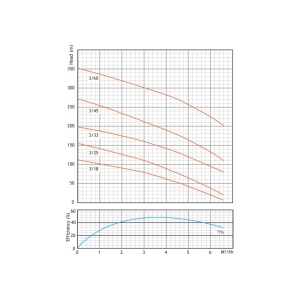

Performance Metrics: The performance chart illustrates the relationship between flow rate (Q in m³/h) and pressure (head in meters). For instance, the 4SP 3/33 model can deliver 3.0 m³/h at 160 meters of head.
Durable Construction: All models feature a 1¼ inch outlet and are built to withstand demanding applications, ensuring longevity and reliability.
| Pump Type |
Power |
Outlet Size |
Weight (Kg) |
Q (m3/H) |
DISCHARGE(Q) |
DN |

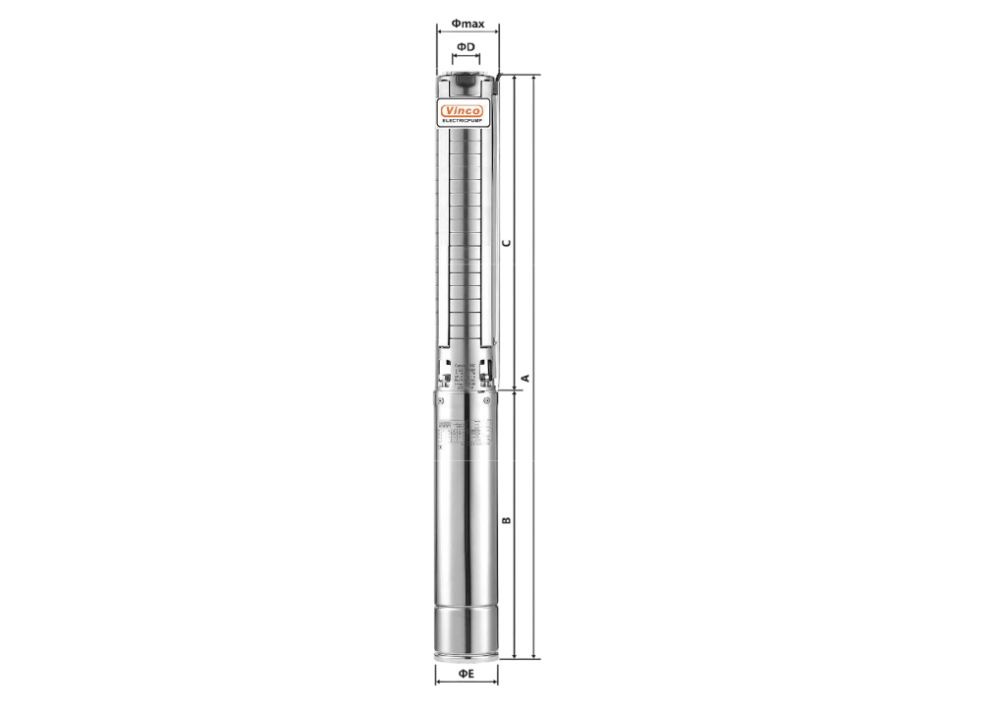

DIMENSIONS & WEIGHT |
|
| 0 |
1.2 |
2.4 |
3 |
3.6 |
4.2 |
4.8 |
6 |
6.6 |
| kW |
HP |
TOTAL HEAD IN METERS (M) |
A |
B |
C |
D |
E |
MAX |
| 4SP 3/18 |
1.1 |
1.5 |
11/4” |
6.22 |
H(M) |
112 |
99 |
86 |
79 |
69 |
58 |
47 |
20 |
6 |
32 |
939 |
406 |
533 |
11/4” |
95 |
100 |
| 4SP 3/25 |
1.5 |
2 |
8.88 |
155 |
138 |
120 |
110 |
98 |
84 |
70 |
38 |
20 |
1121 |
441 |
680 |
| 4SP 3/33 |
2.2 |
3 |
11.92 |
198 |
185 |
169 |
160 |
149 |
138 |
125 |
95 |
80 |
1430 |
540 |
717 |
| 4SP 3/45 |
3 |
4 |
16.49 |
272 |
250 |
225 |
212 |
199 |
185 |
170 |
133 |
110 |
1750 |
586 |
1001 |
| 4SP 3/60 |
4 |
5.5 |
19.15 |
352 |
333 |
312 |
301 |
290 |
278 |
263 |
225 |
202 |
2020 |
615 |
1423 |
