The Vinco 6SP 30 Series outlines a line of very high-flow, multi-stage centrifugal pumps designed for 50Hz power supplies.
Models Available:
- 6SP 30/08 7.5 kW (10.0 HP)
- 6SP 30/13 11.0 kW (15.0 HP)
- 6SP 30/17 15.0 kW (20.0 HP)
Extremely High Flow Rates: Engineered for moving large volumes of water efficiently, making it suitable for demanding applications.
Large Outlet Size: Features a 3-inch outlet designed to handle high flows with minimal restriction.

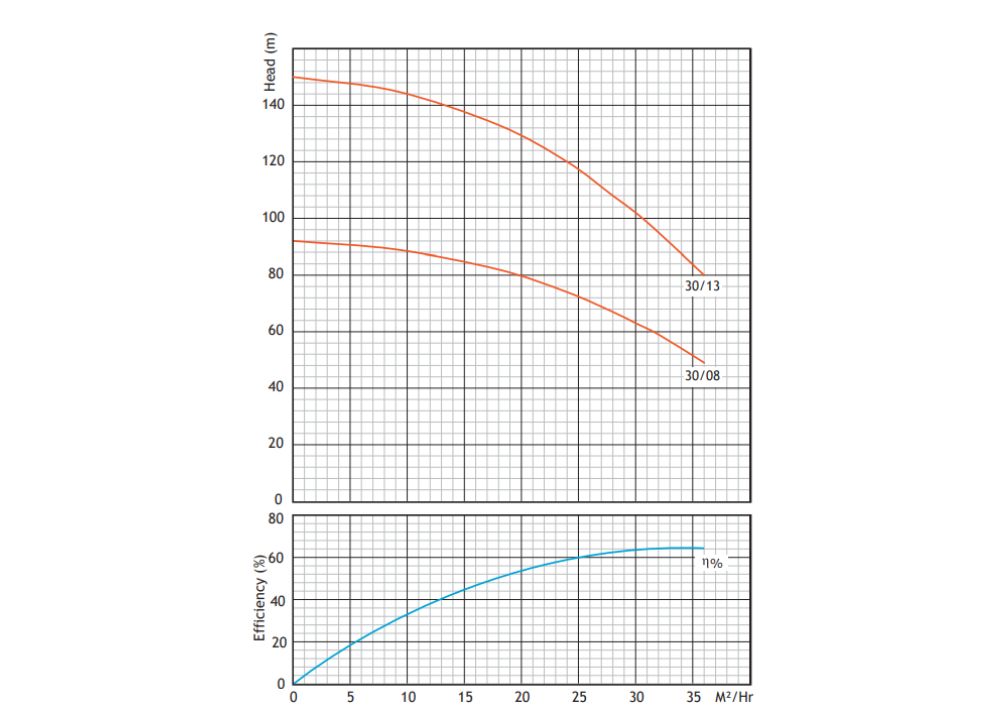

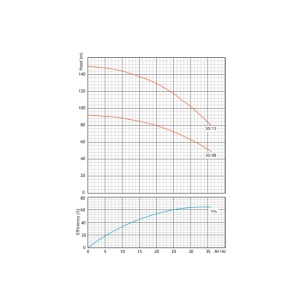

Performance Metrics: The performance chart highlights the pump's ability to maintain pressure at remarkable flow levels. For example, the 6SP 30/13 model can deliver 24.0 m³/h at a pressure of 120 meters.
|
Pump Type
|
Power
|
Outlet Size
|
Weight (Kg)
|
Q (m3/H)
|
DISCHARGE(Q)
|
DN
|

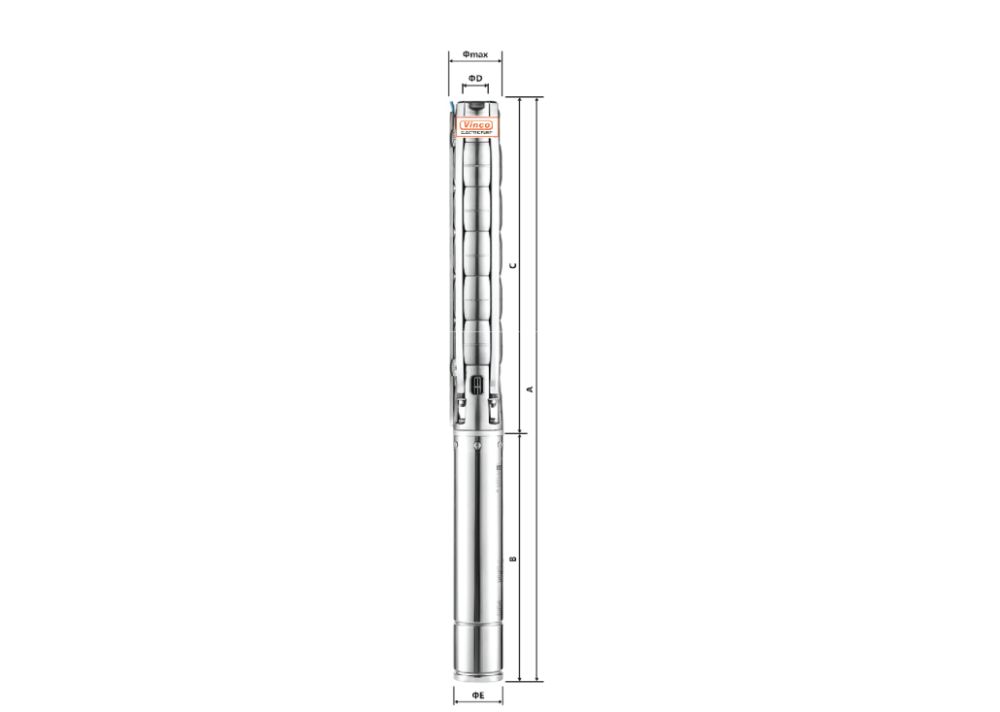

DIMENSIONS & WEIGHT
|
|
|
0.0
|
9.0
|
18.0
|
24.0
|
28.0
|
30.0
|
32.0
|
36.0
|
|
kW
|
HP
|
TOTAL HEAD IN METERS (M)
|
A
|
B
|
C
|
D
|
E
|
MAX
|
|
6SP 30/08
|
7.5
|
10.0
|
3”
|
17.9
|
H(M)
|
92
|
89
|
82
|
74
|
67
|
63
|
59
|
49
|
80
|
1465
|
742
|
723
|
3”
|
144
|
145
|
|
6SP 30/13
|
11.0
|
15.0
|
3”
|
26.9
|
150
|
145
|
133
|
120
|
108
|
102
|
95
|
80
|
80
|
1635
|
777
|
858
|
|
6SP 30/17
|
15.0
|
20.0
|
3”
|
34.1
|
196
|
190
|
173
|
156
|
141
|
133
|
125
|
105
|
80
|
1845
|
807
|
993
|
